-36%
Cables & Connectors, Cat 6 I/O Box, Faceplate, Keystone Jack & Back Box

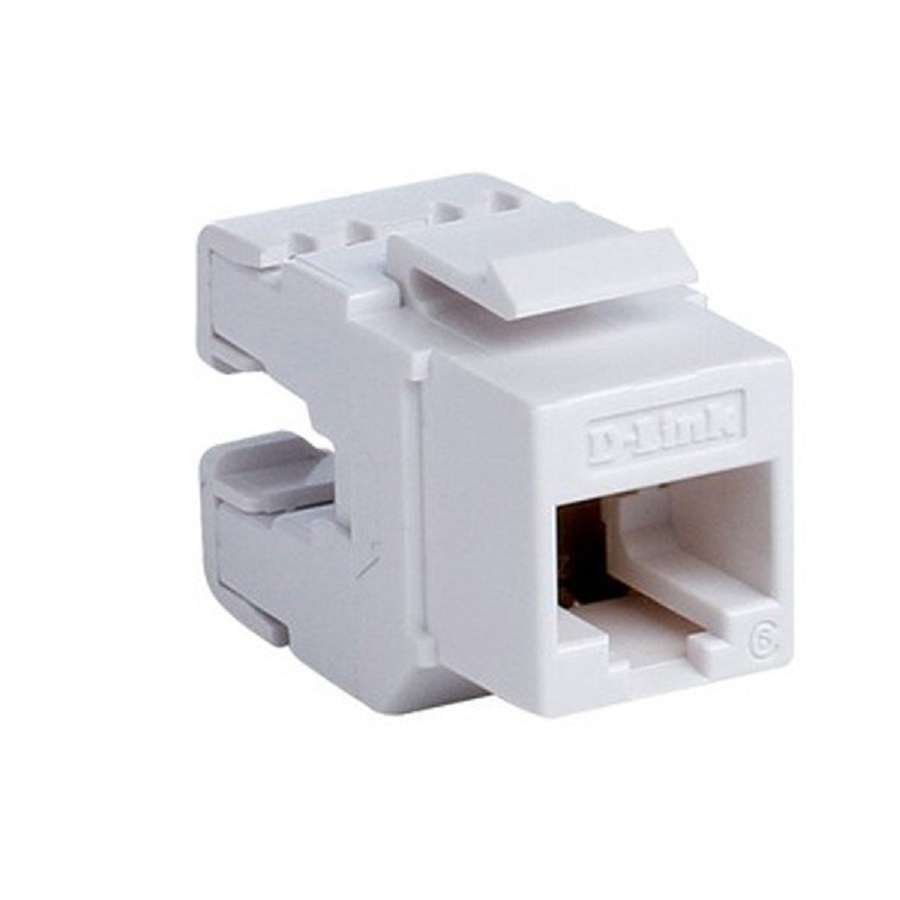

D-Link Keystone Jack CAT 6 White
Availability:
15 in stock
| Brand | D-Link |
| Product Id / Model | NKJ-C6WHI1B21 |
| Color | White |
| Product Dimensions | 4x3x1 cm |
| Weight | 8 Gram |
| Application | Keystone Jack – Used with faceplate and back boxes. |
| Inside the Box | 1x White I/O Keystone Jack |
₹235.00 ₹370.00
15 in stock
Compare- 1x White I/O Keystone Jack
| Weight | 0.008 kg |
|---|---|
| Dimensions | 4 × 4 × 1 cm |
Specification – Technical
| Information | Description |
| Punch Down Jack | RJ45 8P 8C 180°C 50u |
| Terminating | 4 pairs, 22-26 AWG Cable |
| Universal labels color coded | For T568A and T568B wiring schemes |
| Fitting | High density keystone panel |
| RJ45 Jack | Housing: ABS+PC, UL 94V-0, with optional color
Contact Bracket: PC, UL 94V-2, transparent |
| RJ45 Jack Contact | Material: Phosphor Bronze with Nickel Plated
Finish: 50 micro-inch Gold Plated on plug contact area |
| IDC | Housing: PC + Glass Fiber, UL 94V-2
Terminal: Phosphor Bronze, Tin Plated |
| IDC CAP | ABS, UL 94V-0 |
Specification – Performance
| Information | Description |
| wiring sticker | T568A & T568B |
| Insertion force: | 20N max (IEC 60603-7-4) |
| Retention strength | 7.7 kg between jack and plug |
| Operation temperature | -10°C to 60̊C (ISO/IEC 11801, ANSI/TIA/EIA 568 C.2) |
| Life (Mating Cycles) | Jack: 750 cycle min (ISO/IEC 11801, IEC 60603-7-4) |
| IDC | Suitable for 22-26 AWG stranded and solid wire,
compatible with both 110 & Krone punch down tools |
Certification
| Information | Description |
| Certified | UL, ETL certified |
| Cat6 transmission performance | In compliance with the ANSI/TIA/EIA 568 C.2 standard |
